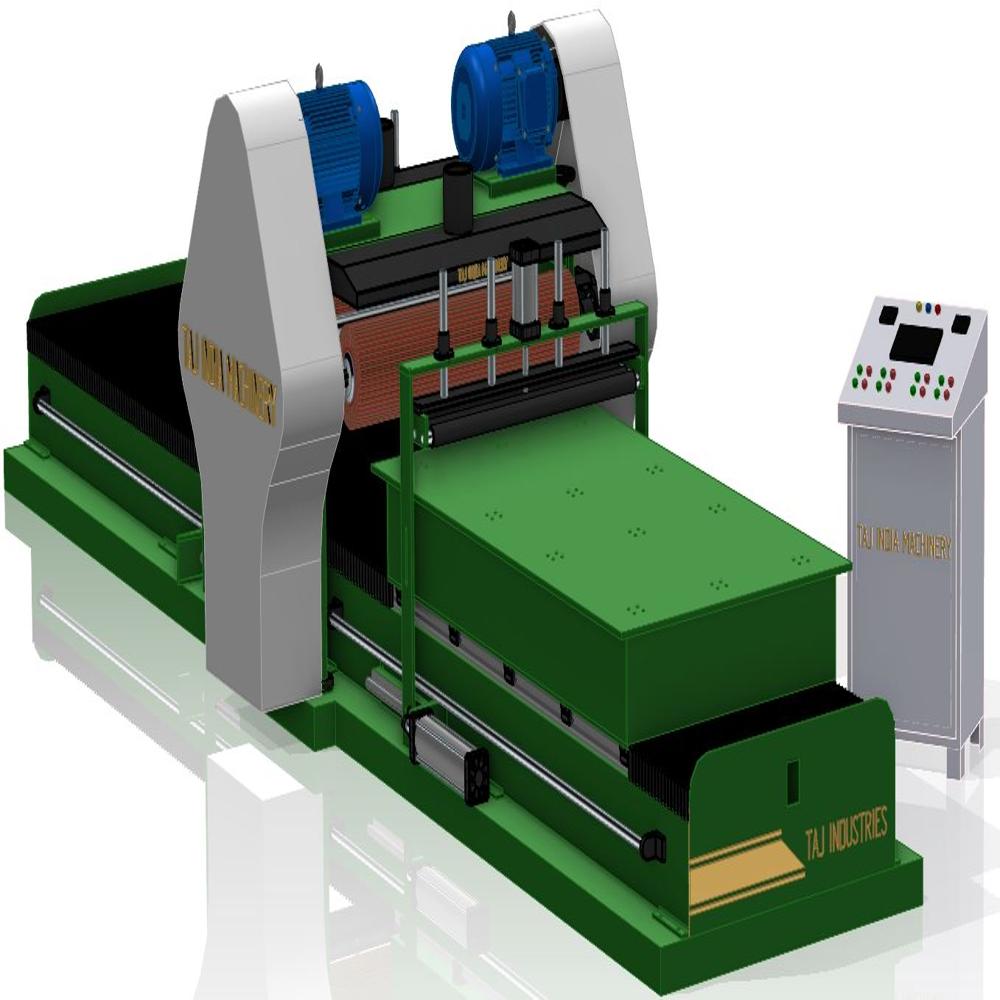

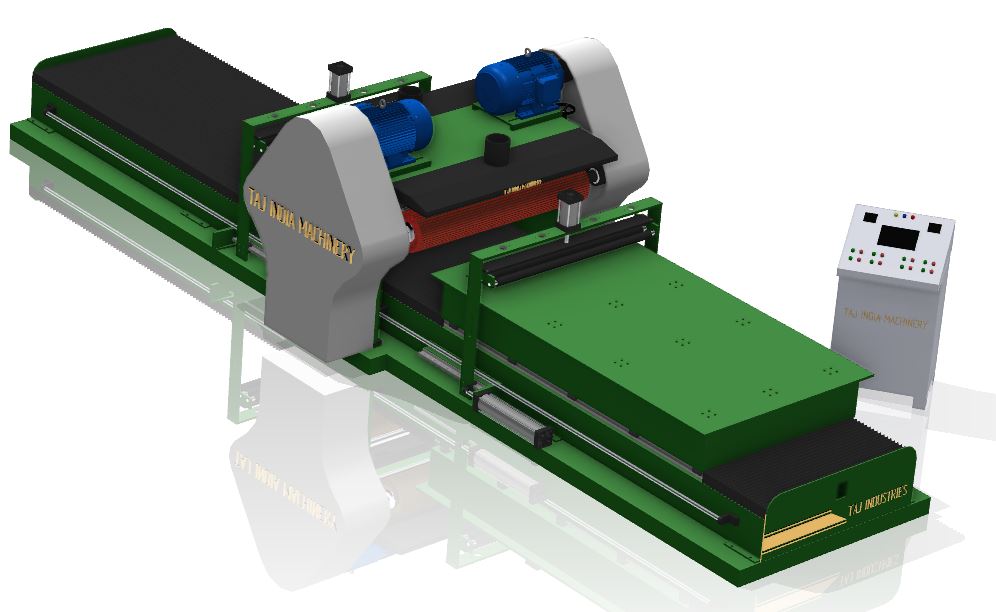

Automatic Sheet Polishing Machine 60"x96"

Name: Automatic Sheet Polishing Machine 60"x96"
Brand: TAJ INDUSTRIES
Price: 2000000.0 INR
Availability: InStock

Price 2000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Automatic Sheet Polishing Machine 60"x96" Specification

Polish Type
Abrasive Belt/Brush Polishing

Form
Machine

Application Surface
Stainless Steel, Aluminum, Mild Steel Sheets

Grade Standard
Industrial Grade

Usage & Applications
Surface Finishing, Polishing, Deburring of Large Metal Sheets

Accessories
Polishing Wheels, Dust Collection Unit (optional), Tool Kit

Application Areas
Metal Fabrication Workshops, Sheet Metal Industry, Stainless Steel Product Manufacturers

Power Source
Electric

Finish Type
Mirror, Matt, Hairline as per requirement

Power
7.5 - 10 HP Main Motor

Type
Automatic Sheet Polishing Machine

Material
Mild Steel Body, Stainless Steel Parts

Capacity
60 x 96 sheet size

Computerized
Yes

Automatic Grade
Automatic

Transparency
Opaque

Thickness
For sheets up to 2 mm - 10 mm

Air Pressure
5-7 Bar (if required for pneumatic parts)

Heating System
No direct heating system (Dry Polishing)

Voltage
415 V, 50 Hz, 3 Phase

Size
Overall approx. 3500 x 2000 x 1800 mm

Weight
Approx. 1500-2000 kg

Color
Industrial Grey/Blue (as shown in image)

Safety Features
Emergency Stop, Overload Protection

Feeding System
Automatic In-feed and Out-feed Rollers

Noise Level
Less than 80 dB

Coolant System
Dry Type (Wet Option Available on Request)

No. of Heads
2-3 Polishing/Grinding Heads (Customizable)

Control Panel
Digital/PLC Controlled Panel

Dust Extraction
Integrated/External Supported (optional)

Speed Control
Variable Speed (Frequency Control Drive)

Working Table Movement
Automatic, Conveyor Based

Automatic Sheet Polishing Machine 60"x96" Trade Information

Minimum Order Quantity
1 Piece

FOB Port
AT OUR FACTORY

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Automatic Sheet Polishing Machine 60"x96"

SUITABLE PRODUCTS AND METALS

1.It is suitable for Polishing of Products Material Stainless Sheet, Copper, Aluminum, Iron, Alloy etc.

2.Suitable Polishing Materials: Abrasive wheel, sisal wheel, cloth wheel.

3.Use: Suitable For polishing and plane burnishing of stainless steel plate black metal, non-furious metal, aluminum plate polishing the rags, edge, oxide, skin, removed by the sheet polishing machine and finishing as glossy mate mirror etc.

Versatile Polishing Solutions

This machine is capable of providing multiple surface finishes, such as mirror, matt, and hairline, to meet diverse industry requirements. It caters to the polishing and deburring needs of stainless steel, aluminum, and mild steel sheets, making it an essential addition for metal fabrication units and manufacturers seeking high-quality surface finishes.

Automated Operation for Enhanced Productivity

The system incorporates a sophisticated automatic conveyor and digital/PLC-controlled panel, significantly reducing manual intervention. With the ability to automatically feed and collect sheets, production rates are accelerated while ensuring consistent quality. Variable speed control allows operators to tailor the polishing process to specific material and finish specifications.

Robust Design and Comprehensive Safety

Constructed from industrial-grade mild steel and stainless steel parts, the machine ensures durability in demanding environments. Integrated safety features, including an emergency stop button and overload protection, guard against workplace accidents and machinery damage, enhancing overall reliability and peace of mind during operations.

FAQ's of Automatic Sheet Polishing Machine 60"x96":

Q: How does the automatic sheet polishing machine improve productivity in metal fabrication workshops?

A: The machine automates the in-feed, polishing, and out-feed processes using conveyor-based movement and a PLC-controlled panel, greatly reducing manual handling. Its variable speed control and customizable polishing heads ensure consistent, high-quality finishes, allowing for faster and more efficient processing of large sheets.

Q: What types of metal sheets can be processed with this machine?

A: This machine is engineered for stainless steel, aluminum, and mild steel sheets, accommodating sheet thicknesses from 2 mm to 10 mm and sizes up to 60" x 96". The versatile abrasive belt/brush system adapts to various surface finish requirements.

Q: When should users opt for the wet polishing option?

A: Wet polishing is recommended when working with materials prone to overheating or when a finer, cooler finish is required. Although the standard configuration is dry type, a wet polishing module can be provided upon request for specific finishing needs or safety reasons.

Q: Where is dust generated during polishing handled in this machine?

A: Dust is managed through an integrated extraction system or an externally supported dust collection unit, which is optional. This ensures a cleaner work environment and helps maintain air quality and operational efficiency.

Q: What is the typical process for operating the machine?

A: Operators load sheets onto the in-feed rollers, select the desired finishing parameters via the digital/PLC panel, and initiate the automatic cycle. The conveyor system carries the sheets through multiple polishing/grinding heads, with finished products automatically collected at the out-feed end.

Q: How does the machine ensure operator safety during use?

A: Operator safety is prioritized with features such as an emergency stop button and overload protection. The robust enclosure and noise reduction design also contribute to a safer and more comfortable workplace.

Q: What are the key benefits of using this automatic sheet polishing machine for industrial applications?

A: Key benefits include high productivity, uniform surface finishes, reduced manual labor, operational safety, and the ability to handle large-format metal sheets. Its versatile configuration accommodates diverse industrial applications, from metal furniture manufacturing to architectural panel finishing.
